Homogeneous Material Threshold Calculations: IMDS & GADSL Guide

Homogeneous material thresholds are critical when preparing automotive material declarations in IMDS and checking substances against GADSL requirements. The key is to calculate substance concentrations at the correct homogeneous-material level, rather than simply looking at the overall part composition.

For automotive suppliers, getting this wrong can lead to incorrect material declarations, unnecessary substance reporting, rejected IMDS submissions, or compliance data that cannot be reliably used downstream.

This guide explains how homogeneous material threshold calculations work, how they relate to IMDS and GADSL, and what suppliers should check before submitting material data.

What is a homogeneous material?

A homogeneous material is a material that cannot be mechanically disjointed into different materials.

For example, a plastic component containing additives may be treated as one homogeneous material if its composition cannot be separated mechanically. A painted metal component, however, may contain multiple homogeneous materials because the coating and the underlying metal can be considered separately.

This distinction matters because IMDS reporting and substance concentration checks are performed at the material level, not simply against the total weight of the finished component.

A supplier therefore needs to identify the relevant materials within a part before calculating substance concentrations.

Why homogeneous material thresholds matter in IMDS

IMDS is designed to capture material and substance information for automotive products. The system uses material-level information to determine whether substances need to be declared and whether submitted data meets applicable reporting requirements.

A common mistake is to calculate a substance percentage against the total part weight.

For example:

• Part weight: 1,000 g
• Homogeneous material: 100 g
• Substance: 0.5 g

Against the complete part, the concentration appears to be:

0.5 ÷ 1,000 × 100 = 0.05%

But against the relevant homogeneous material, it is:

0.5 ÷ 100 × 100 = 0.5%

Those are very different results.

The correct denominator therefore matters.

This is also why understanding the underlying material structure is important when troubleshooting MDS data quality problems.

How to calculate a substance concentration

The basic calculation is:

Substance concentration (%) = Substance mass ÷ Homogeneous material mass × 100

Example

Suppose an automotive component contains:

• Steel: 700 g
• Polymer: 200 g
• Coating: 100 g

A substance is present in the polymer at 0.8 g.

The concentration in the polymer is:

0.8 ÷ 200 × 100 = 0.4%

You should not calculate:

0.8 ÷ 1,000 × 100 = 0.08%

because the substance is contained in the polymer material, not uniformly across the entire component.

The calculation therefore needs to follow the material structure represented in the declaration.

How GADSL thresholds fit into the calculation

GADSL, the Global Automotive Declarable Substance List, provides the automotive industry with substance information used to determine whether substances are declarable or prohibited for specific applications.

The important point is that GADSL requirements should not be interpreted as a single percentage threshold that applies identically to every substance and situation.

Substance status, application, reporting requirements and applicable thresholds need to be considered together.

This means a supplier should identify:

1. The substance present
2. The relevant homogeneous material
3. The substance concentration
4. The applicable GADSL classification
5. The relevant application or reporting condition
6. Whether the substance must be declared in IMDS

For additional context on how IMDS recommendations affect material and substance reporting, see What Is IMDS Recommendation 019?.

Homogeneous material vs finished part: why the distinction matters

Consider a component containing a small amount of a declarable substance.

If the supplier evaluates the concentration against the complete component, the percentage may appear low enough to fall below a threshold.

But if the substance is concentrated within one homogeneous material, its concentration at that material level may be significantly higher.

This is one reason why material decomposition should happen before substance-threshold calculations.

The workflow should therefore be:

Part - Materials - Homogeneous materials - Substances - Concentration - Reporting decision

Not:

Part - Total substance percentage - Reporting decision

IMDS material declarations and FMD

IMDS is not the only way automotive manufacturers manage material information.

Full Material Disclosure (FMD) provides a more detailed view of product and material composition and can support multiple compliance requirements beyond an individual IMDS submission.

The relationship between these approaches is important when organisations need to collect detailed supplier material information and then use that information for different reporting requirements.

For a deeper comparison, see FMD vs IMDS: What's the Difference and How Do They Work Together?.

Common homogeneous-material calculation mistakes

1. Using total part weight

This is one of the most common errors.

The relevant calculation should normally be based on the applicable homogeneous material rather than automatically using the complete part weight.

2. Treating a coating as part of the base material

Surface coatings can represent separate material information and may need to be evaluated independently.

3. Ignoring material structure

A substance may be below a threshold when viewed across the entire component but exceed the relevant threshold within a specific homogeneous material.

4. Applying one threshold to every substance

GADSL classifications and reporting conditions vary. The presence of a percentage value does not mean that one generic threshold can be applied universally.

5. Assuming an accepted IMDS submission means the data is correct

An IMDS submission being accepted does not necessarily mean the underlying supplier information is complete or suitable for every downstream compliance requirement.

Data quality and validation remain important throughout the material-data lifecycle.

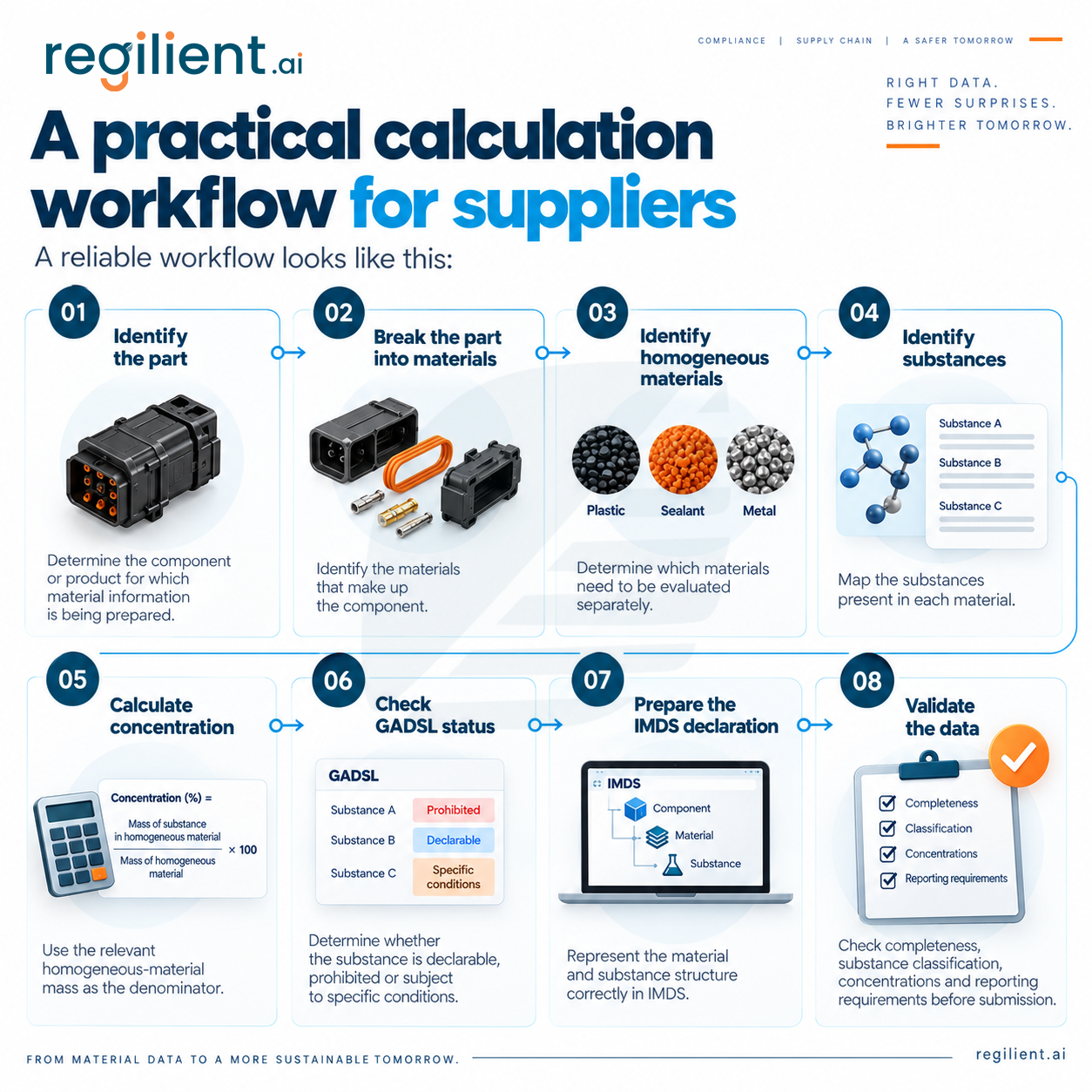

A practical calculation workflow for suppliers

A reliable workflow looks like this:

Step 1: Identify the part

Determine the component or product for which material information is being prepared.

Step 2: Break the part into materials

Identify the materials that make up the component.

Step 3: Identify homogeneous materials

Determine which materials need to be evaluated separately.

Step 4: Identify substances

Map the substances present in each material.

Step 5: Calculate concentration

Use the relevant homogeneous-material mass as the denominator.

Step 6: Check GADSL status

Determine whether the substance is declarable, prohibited or subject to specific conditions.

Step 7: Prepare the IMDS declaration

Represent the material and substance structure correctly in IMDS.

Step 8: Validate the data

Check completeness, substance classification, concentrations and reporting requirements before submission.

What suppliers should validate before IMDS submission

Before submitting an MDS, check:

• Are all relevant materials represented?
• Are homogeneous materials correctly identified?
• Are substance concentrations calculated against the correct material?
• Are GADSL classifications current?
• Are declarable substances correctly identified?
• Are reporting thresholds being applied to the correct material and substance?
• Are material classifications correct?
• Are there inconsistencies between supplier documentation and the IMDS declaration?
• Has the declaration been validated before submission?

These checks become increasingly important when suppliers manage large numbers of parts and declarations.

IMDS and other automotive material-data systems

Automotive suppliers may also work with CAMDS and other material-data systems depending on their customers and markets.

The underlying challenge remains similar: accurate material and substance information needs to be collected, structured and maintained consistently.

For a comparison of the two major automotive systems, see IMDS vs CAMDS: What Automotive Suppliers Need to Know.

Key takeaway

Homogeneous-material threshold calculations are fundamentally about using the right material boundary for the calculation.

The correct process is to identify the homogeneous material, determine the substances it contains, calculate concentration at that level, and then apply the relevant GADSL and IMDS reporting requirements.

For automotive compliance teams, the challenge is not just performing one calculation. It is maintaining accurate material data across suppliers, parts, substances and changing reporting requirements.

That is why material data quality, validation and traceability are just as important as the calculation itself.
